Rapido

Rapido is an ideal operating table/trolley for day surgery unit. It reduces manual handling and improves efficiency in the operating room and ward.

Request a quote

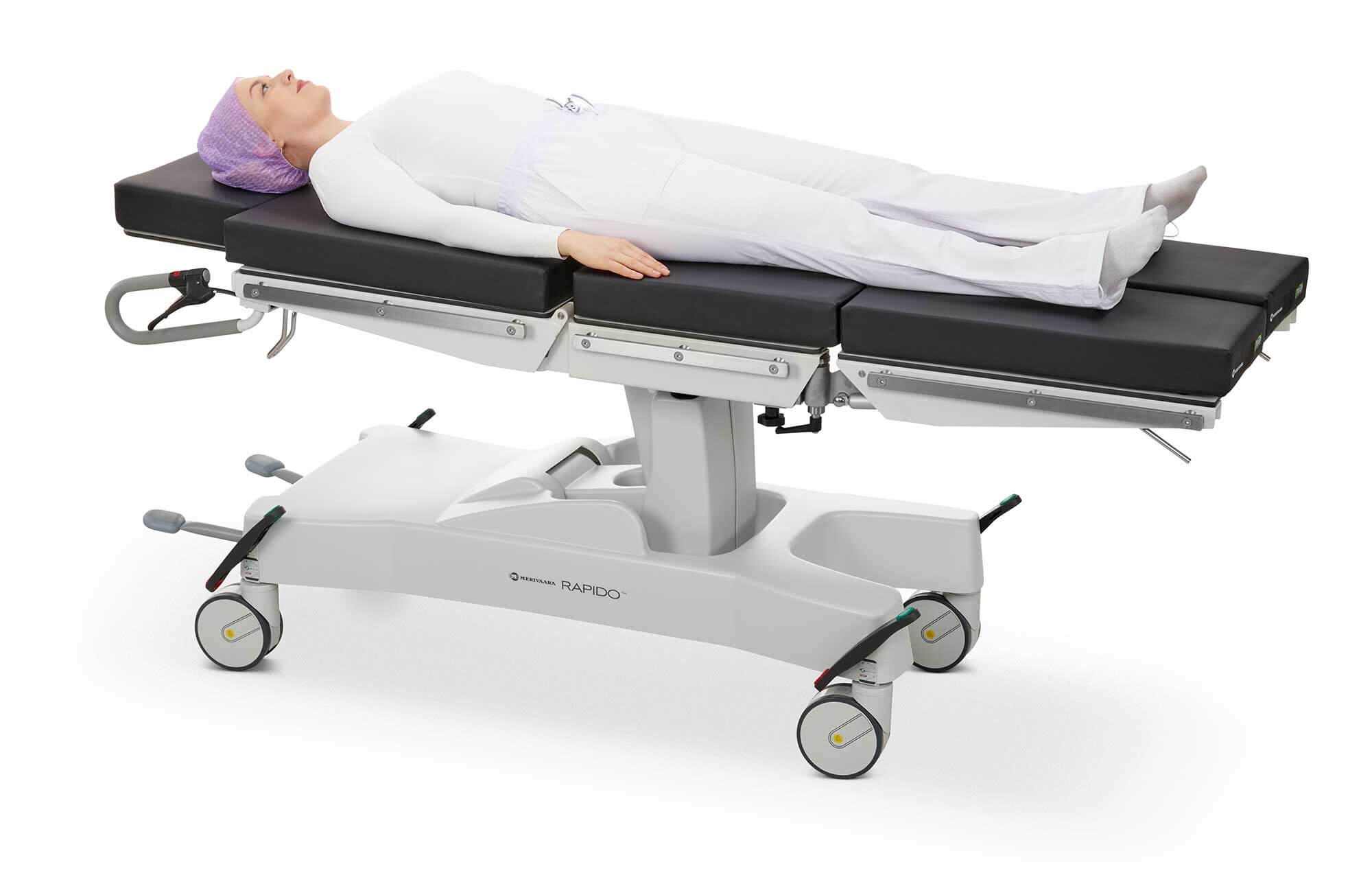

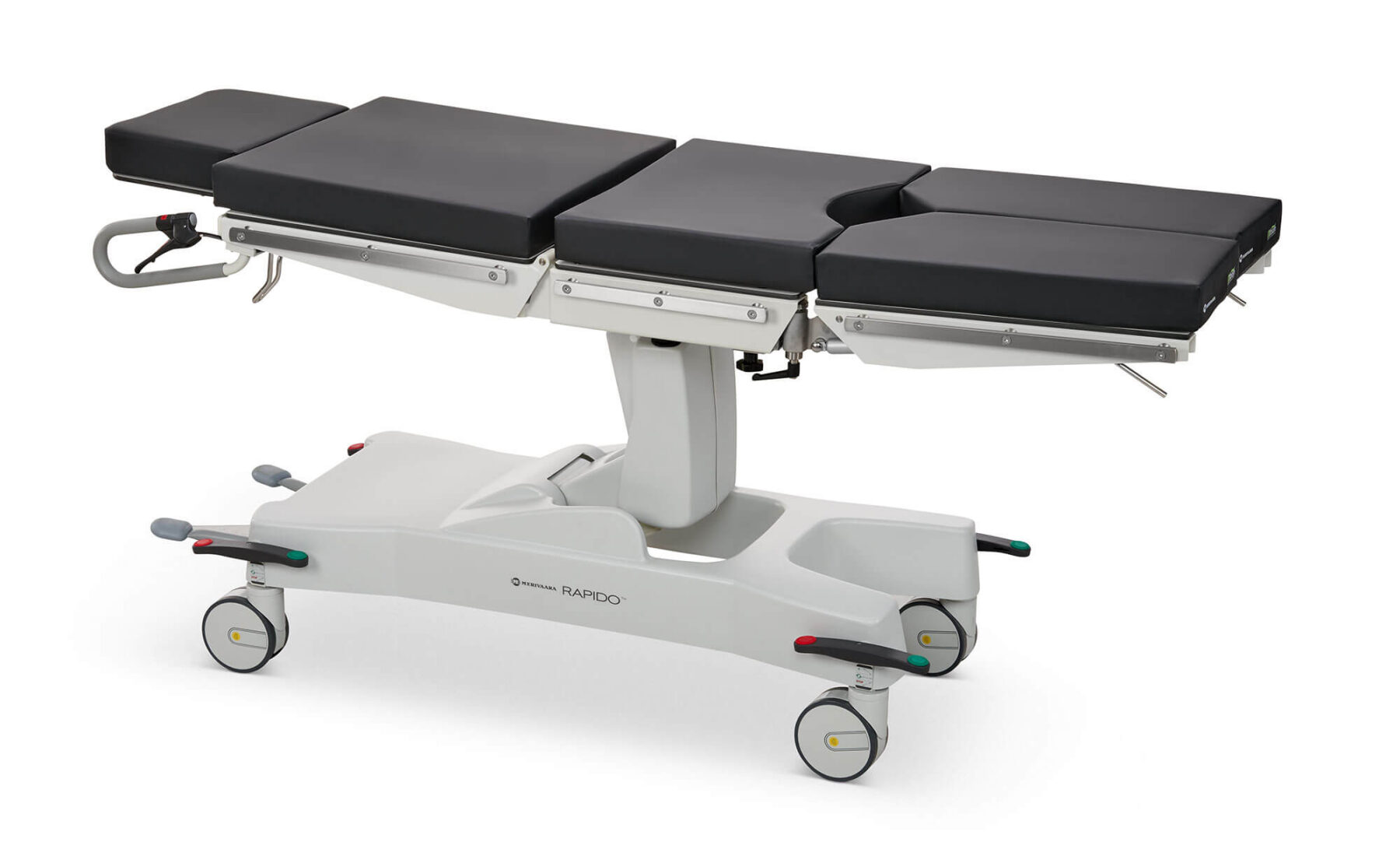

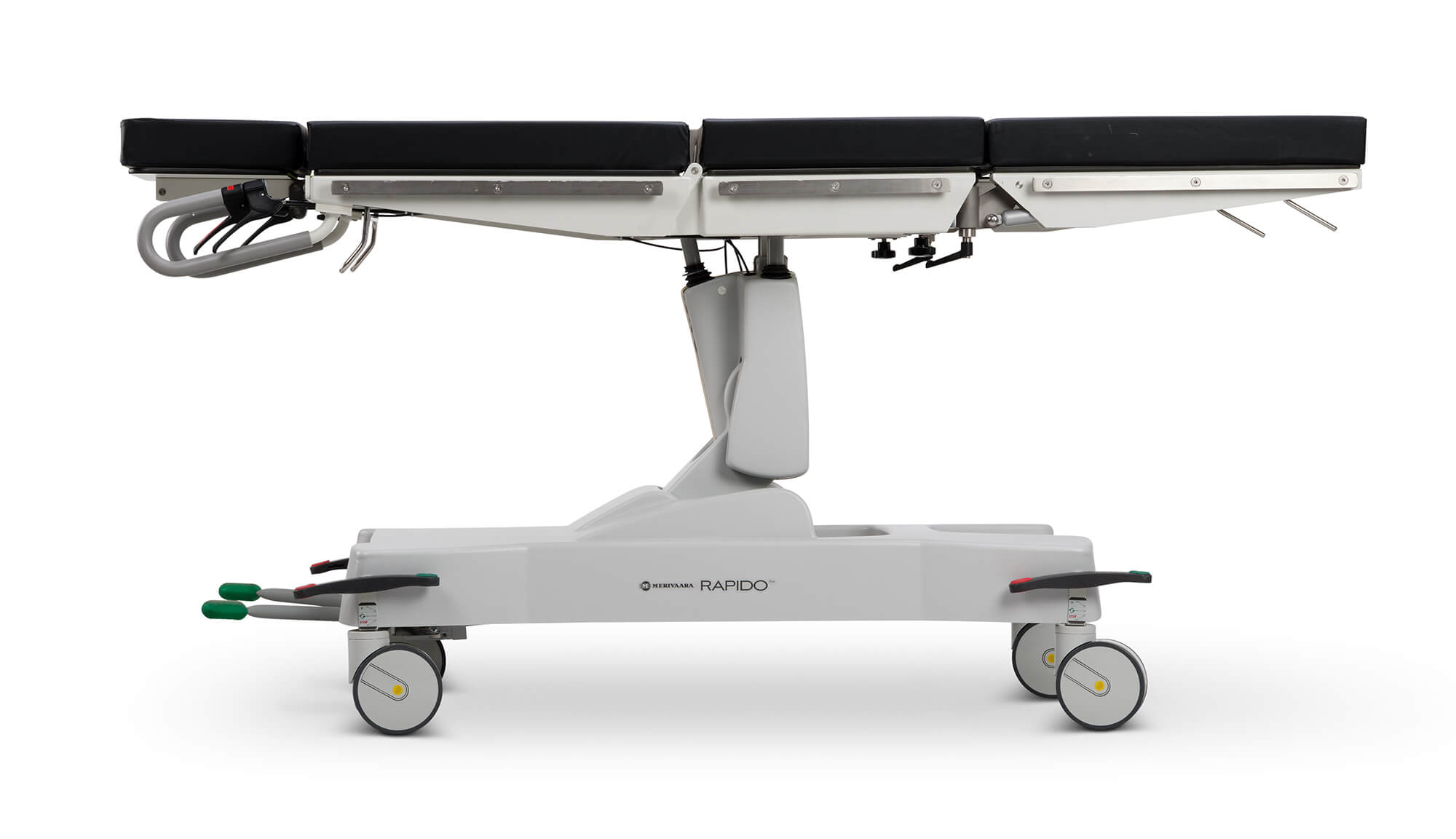

Rapido surgical table/trolley is an all-in-one table for day surgery

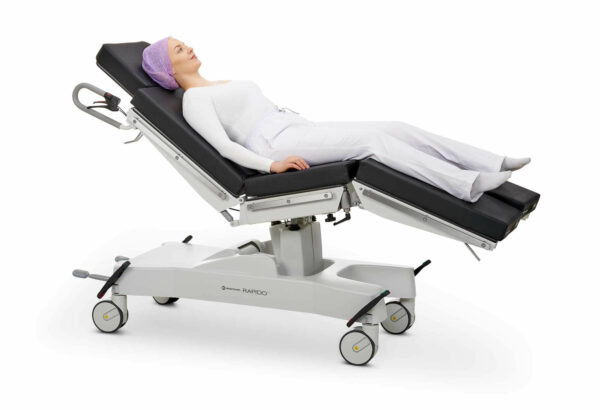

Rapido surgical table is an all-in-one hydraulic day surgery table for preinduction, transport, operation, and recovery. Its variety of features makes it the ideal solution for busy day surgery needs. Rapido surgical table enables expedient operating room transfers in the day surgery ward, which means that operating rooms can be used more efficiently and thus speed up the turnaround time of day surgery. There are two different models of Rapido available: Rapido Standard operating table and Rapido Upper Body operating table.

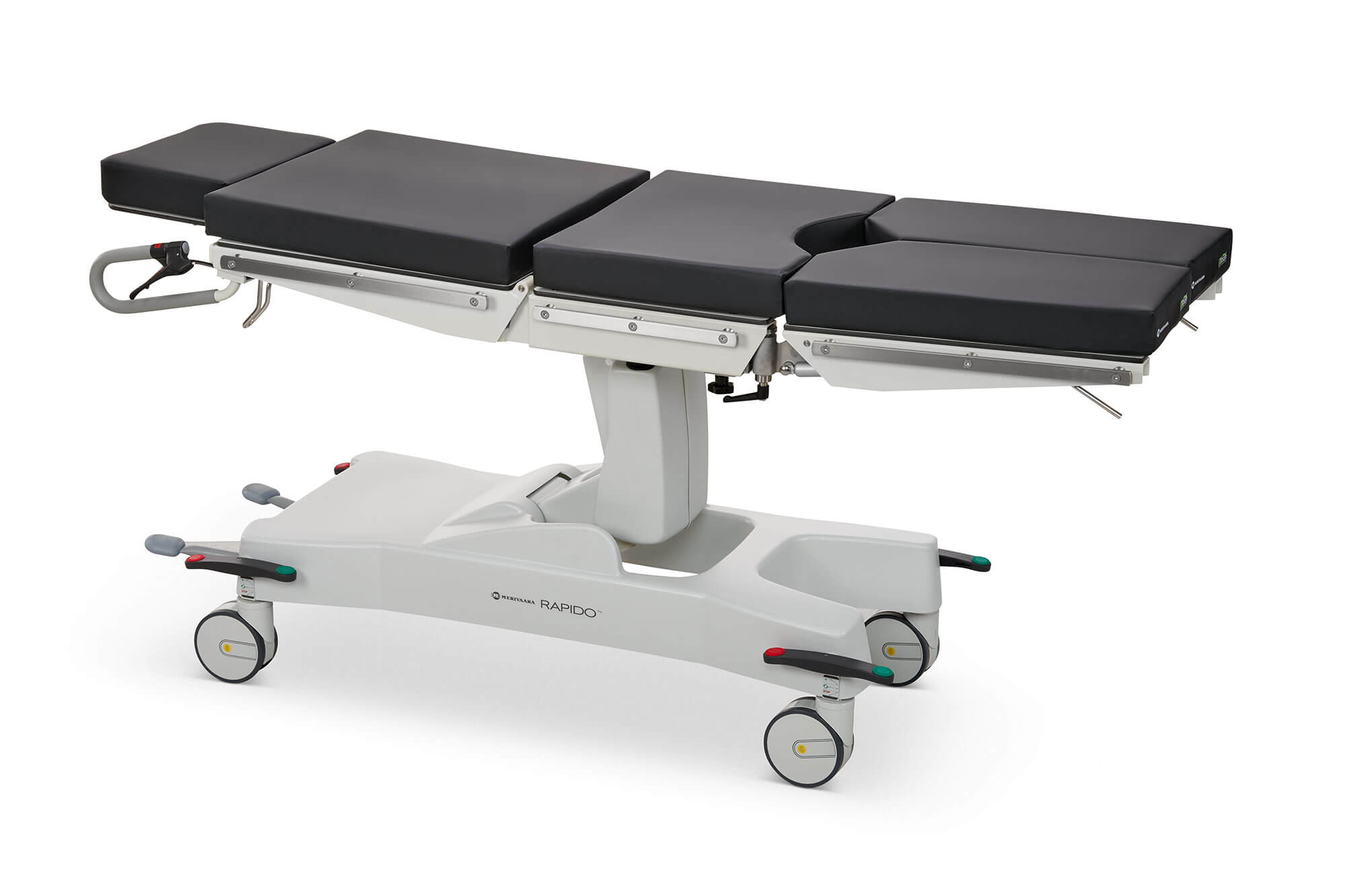

RAPIDO STANDARD IS A VERSITALE OPERATING TABLE FOR DAY SURGERY

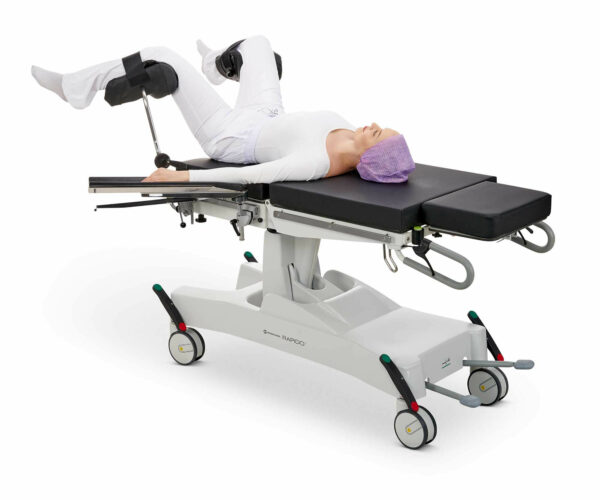

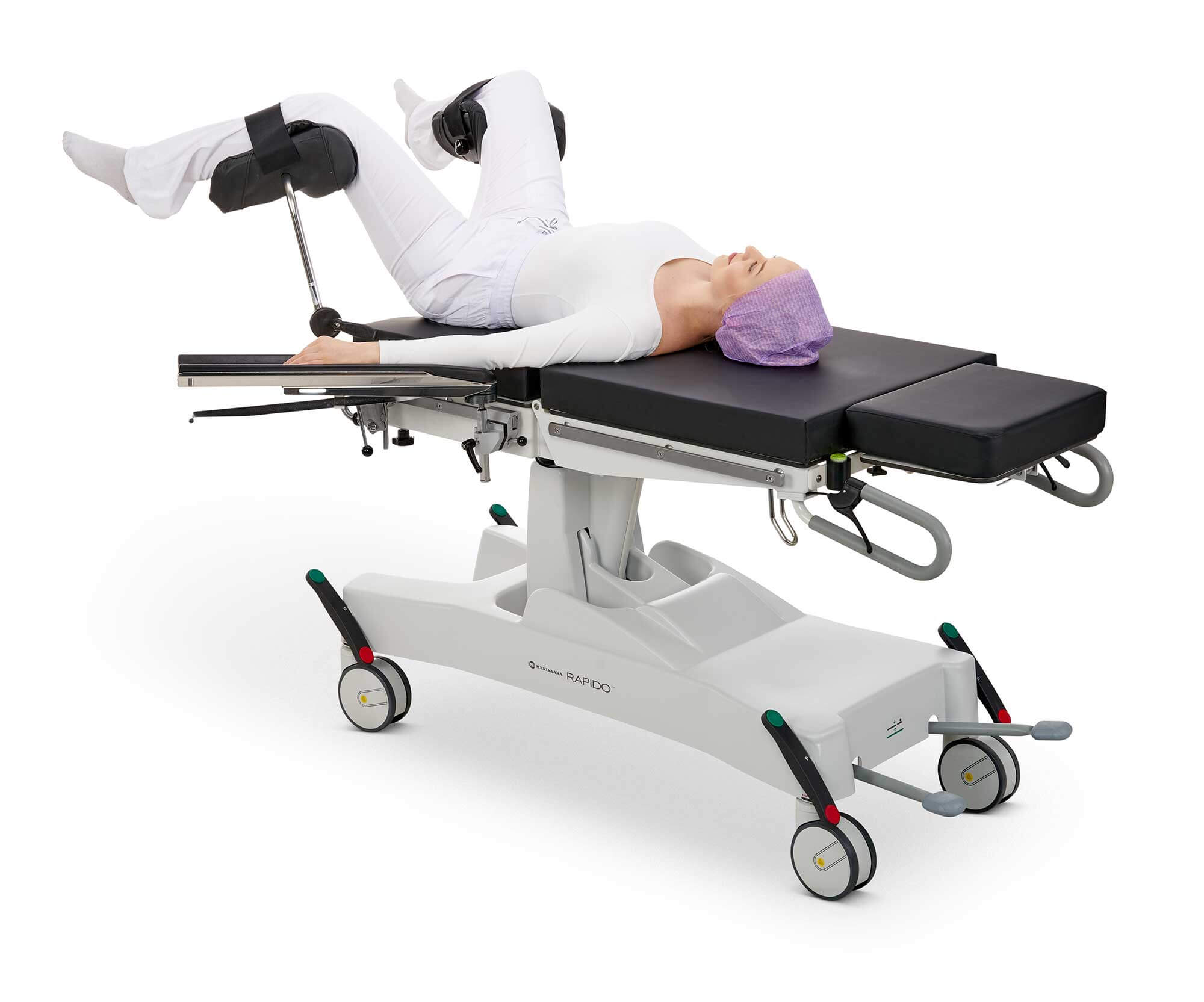

Rapido Standard operating table is especially designed for various types of surgeries, for example Gynecology and Urology procedures. Rapido operating table is lightweight and easy to use and clean. Rapido table reduces manual handling and improves efficiency in the operating room and ward. The open design of Rapido operating table ensures optimum surgical access and easy use of x-ray and other imaging equipment. A comprehensive range of accessories are available to enable you to undertake a wide range of day surgery and minor surgical procedures. C-arm access is quick and easy with Rapido operating table making it ideal for use by Endoscopy department.

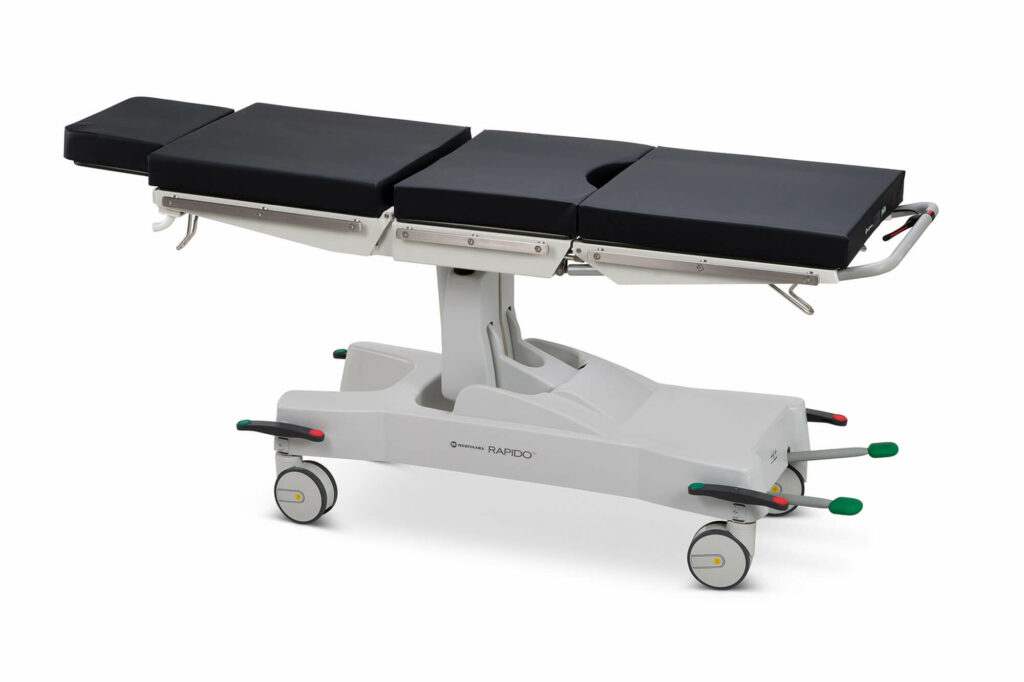

RAPIDO OPERATING TABLE FOR UPPER BODY SURGICAL PROCEDURES

Rapido Upper Body operating table is specially designed for various types of surgeries on the upper body, including head. This model has improved access to the patient’s upper body, optimizing space for the surgeon’s legs and feet. This ensures that the surgeon can come close to the patient. Rapido Upper Body operating table is especially designed for various types of surgeries, for example Thoracic, ENT, and hand & arm procedures. Adjustments of the operating table that the surgeon needs during the upper body operations are conveniently controlled from the head end of the Rapido table.

Highlights

1. Height settings hydraulic and gas spring aided adjustments.

2. Wide table top with 80 mm antistatic and hygienic visco elastic memory foam, mattress that conforms to the patient’s body.

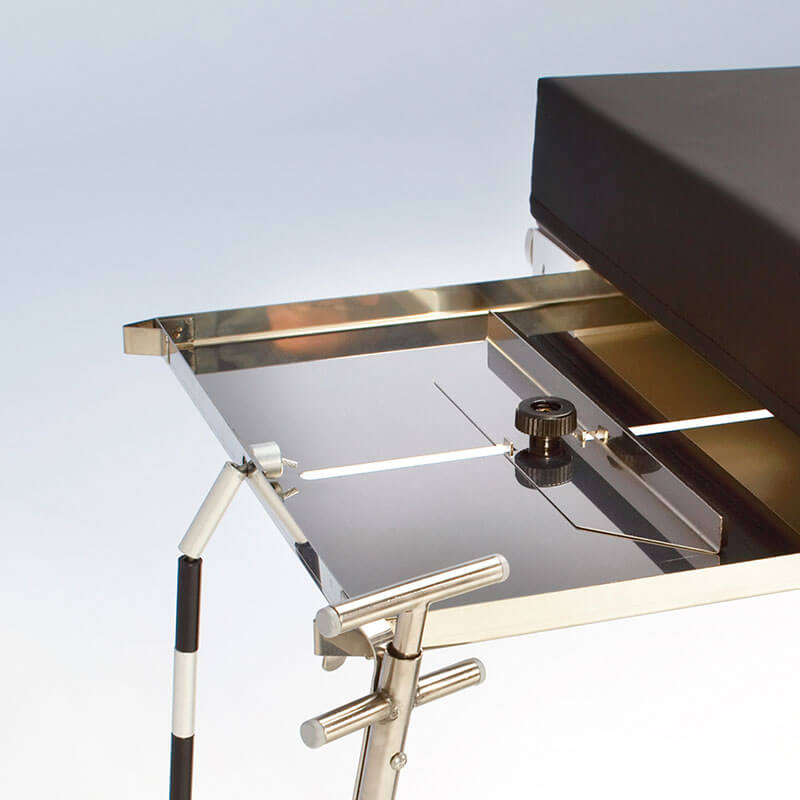

3. X-Ray cassette rails, good imaging access.

4. Allows easy access to the patient, thus providing ergonomic working positions for the surgery team. Provides adequate legroom and a good working area for the surgical team.

5. Fluent movement thanks to larger antistatic twin castors that glide smoothly on a variety of floor surfaces, central locking.

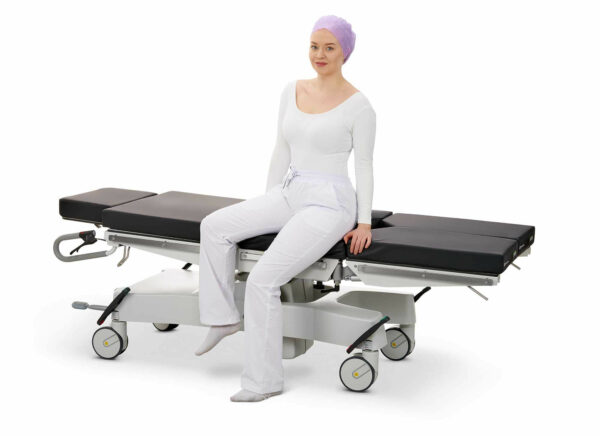

6. Smooth and silent height adjustment allows for optimal positioning helping patients with limited mobility to easily get on and off the table.

7. The lower base is housed inside within a hygienic, easy to clean casing.

8. Height adjustment pedals are easy to access.

9. Trendelenburg and reverse Trendelenburg adjustment handles.

Benefits of the Rapido operating table

1. FLUENT ACCESSIBILITY

The unique table design allows for closer access to the operating field.

2. PATIENT SAFETY

Patient safety rails during transport

3. ECONOMIC EFFICIENCY

Budget friendly
Reduces purchasing costs

4. EASY TO USE

Fluent manoeuvrability
Easy configuration
Light weight sections
Small base footprint allows for effective space saving

Technical Specifications
Downloads

	Standard	Upper Body
Length	2050 mm	2185 mm
Mattress width	600 mm	600 mm
Total width	654 mm	654 mm
Weight	125 kg	125 kg
Safe working load (SWL)	160 kg	160 kg
Height, hydraulically with foot pedals	650–1020 mm	650–1020 mm
Trendelenburg, gas spring-assisted	-25°	-25°
Reverse Trendelenburg, gas spring-assisted	+18°	+18°
Lateral tilt, gas spring-assisted	± 15°	–
Back section adjustment, gas spring-assisted	– 4°…+70°	– 4°…+70°
Leg section adjustment, gas spring-assisted	– 90°…+4°	– 50°…+4°
Head rest	– 40°…+25°	– 40°…+25°
Castors size	Ø 150 mm	Ø 150 mm
Antistatic castors: washable, swivelling twin-castors, central locking device pedal	√	√

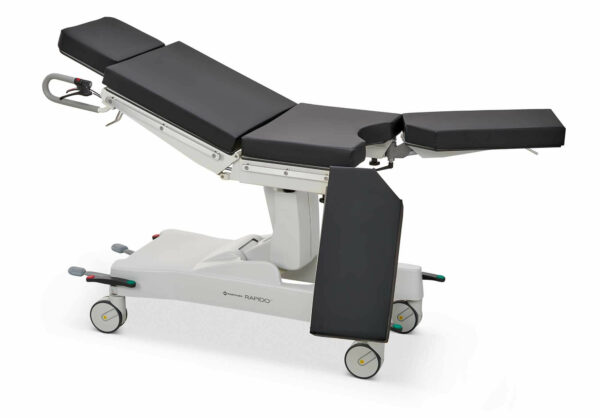

Number of table top sections	4 sections / 5 sections (divided foot section)	4 sections (one-piece leg section)
Fixed back and seat sections	√	√
Leg and head sections detachable	√	√
Top plate of X-ray translucent high pressure laminate	√	√
X-ray cassette rails along the full length of the surgical surface	√	√
Accessory rails of stainless steel	√	√
Casings of shock-resistant ABS plastic	√	√
Mattress type	Antistatic and hygienic visco elastic memory foam 80 mm	Antistatic and hygienic visco elastic memory foam 80 mm
Warranty	2 years	2 years
Product code	100001860	100001865
Official product name	Rapido	Rapido Upper Body
Manufacturer	Merivaara Corp.	Merivaara Corp.
√ = included
– = not available
