Merivaara’s award-winning surgical lights – Q-Flow family



Q-Flow surgical lights reduce the risk of infection

One cause of contamination in hospitals is uncontrolled air flow in operating rooms. Traditional medical light heads cause air to rise in the operating area, which increases particle concentration and the patient’s burden of infection. Watch video Reducing risk of infection in operating rooms. When Merivaara’s R&D started to design the Q-Flow surgical light, the starting point was how to reduce the risk of infection in operating rooms. The Q-Flow surgical light is designed so that the airflow travels optimally, the result of which ventilation works properly in the operating room. The Q-Flow surgical light has a turbulence intensity of only 15.9 % when the medical industry standard specifies it to be below 37.5 %. As the Q-Flow surgical light helps to keep the operating area clean from harmful smoke and gases, there is no additional particle burden created in the operating area which improves the working conditions of the entire surgical team. Merivaara’s Q-Flow surgical light has received several design awards and has also received a Design from Finland mark.

Red dot award winner 2017, logo.
Fennia Prize Grand Prix 2017, logo.
Illustration of CE mark
Illustration of Medical Device
Design from Finland, logo.

Q-Flow models

123

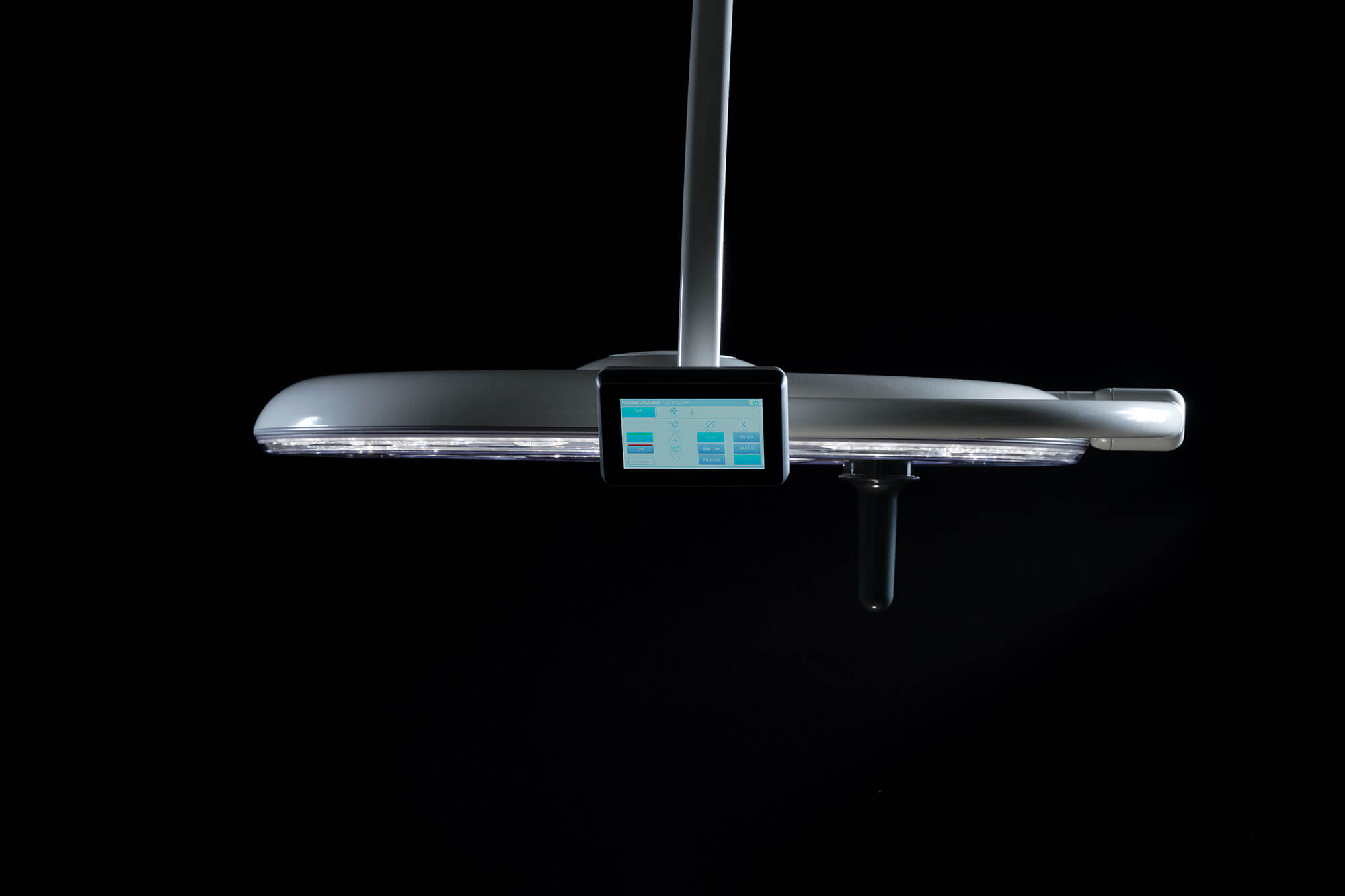

1. Fluent – Functional simplicity

Main features:
• Excellent optical performance
• Design optimized for air flow
• Fluent usability
• Easy to clean
• MeriMote and OpenOR compatible

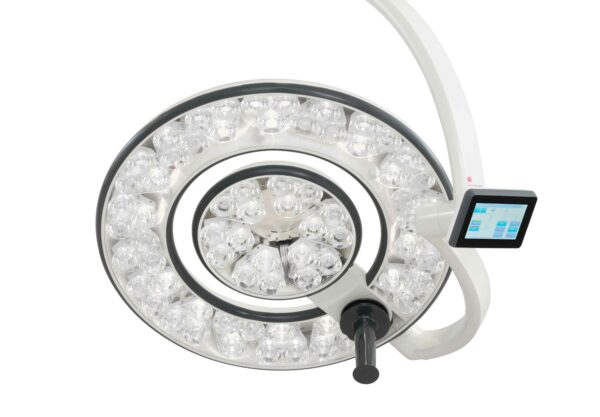

2. Vision – Flexible viewing angles

Additional features:
• HD camera option
• Green ambilite
• Lightweight

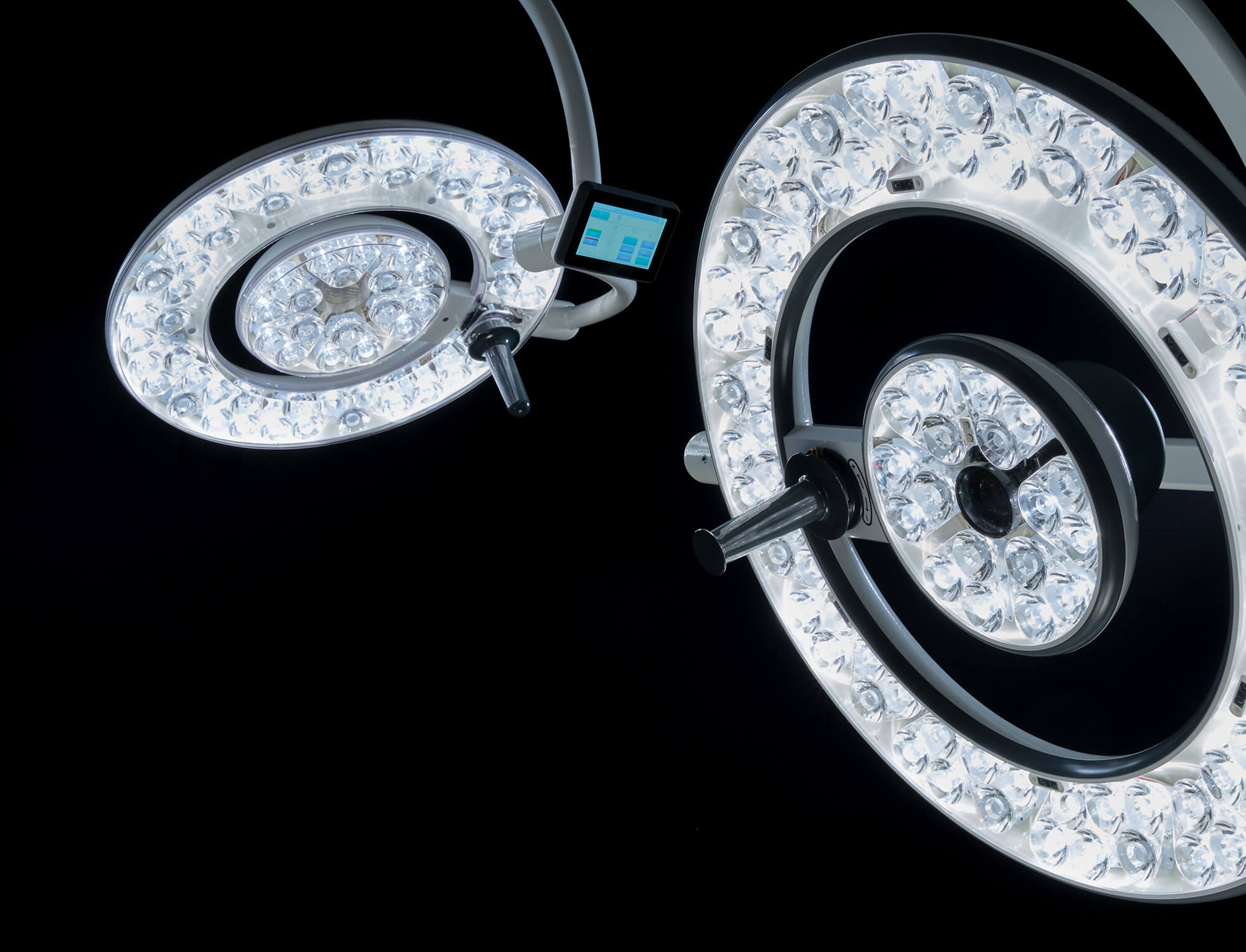

3. Intelligent – Maximum comfort and ease of use

Additional features:
• Intueri™ Sterile user interface
• DOC™ Dynamic Obstacle compensation

Benefits of the Q-Flow family

1. REDUCED RISK OF INFECTION IN OPERATING AREAS

The design of the Q-Flow surgical light is optimized to improve air flow circulation in the operating area. This will help keep the area clean, improving working conditions for the entire surgical team and increasing patient safety. Turbulence intensity is only 15.9%, when the medical industry standard specifies it to be below 37.5 %.

2. PERFECT TISSUE COLOR RENDERING FOR PLASTIC SURGERY AND OTHER SKIN OPERATIONS

The R9 value (red) of the Q-Flow surgical light is the best in its class 98, making it perfect for the surgeon to distinguish between different tissue and vascular colors. The R13 value (skin) 98 is also excellent, which is particularly important in plastic surgery and in operations, where seeing the skin accurately is important.

3. ERGONOMICAL WORKING CONDITIONS FOR ENTIRE SURGICAL TEAM

Ergonomics and efficiency of the surgical team is improved significantly due to Merivaara’s Dynamic Obstacle Compensation (DOC™) which decreases the need to adjust the luminaire of the surgical light.

  • Shadowless light in the surgical area provides optimal light in all circumstances
  • Automatic light dimming reduces temperature above surgical team’s heads
  • Q-Flow surgical light restores original lighting conditions automatically

4. INTUITIVE SURGICAL LIGHT

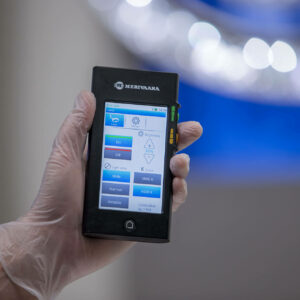

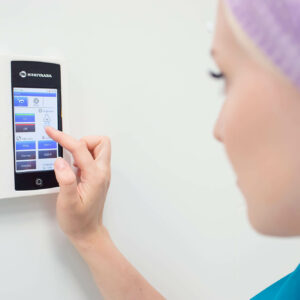

Surgeons can adjust the dimming and the field size of the medical light field from the sterile area due to Merivaara’s patented Intueri™ system. This allows surgeons to keep their focus on the operating area. The intuitive user interface of the Q-Flow touch panel and its auxiliary controllers – multifunctional remote control Merimote and hospital integration system OpenOR™ – offer similar, easy-to-use controls for the Q-Flow surgical light and its camera in multiple languages. This allows users to switch between control devices smoothly as needed.

5. ERGONOMIC CAMERA SOLUTIONS

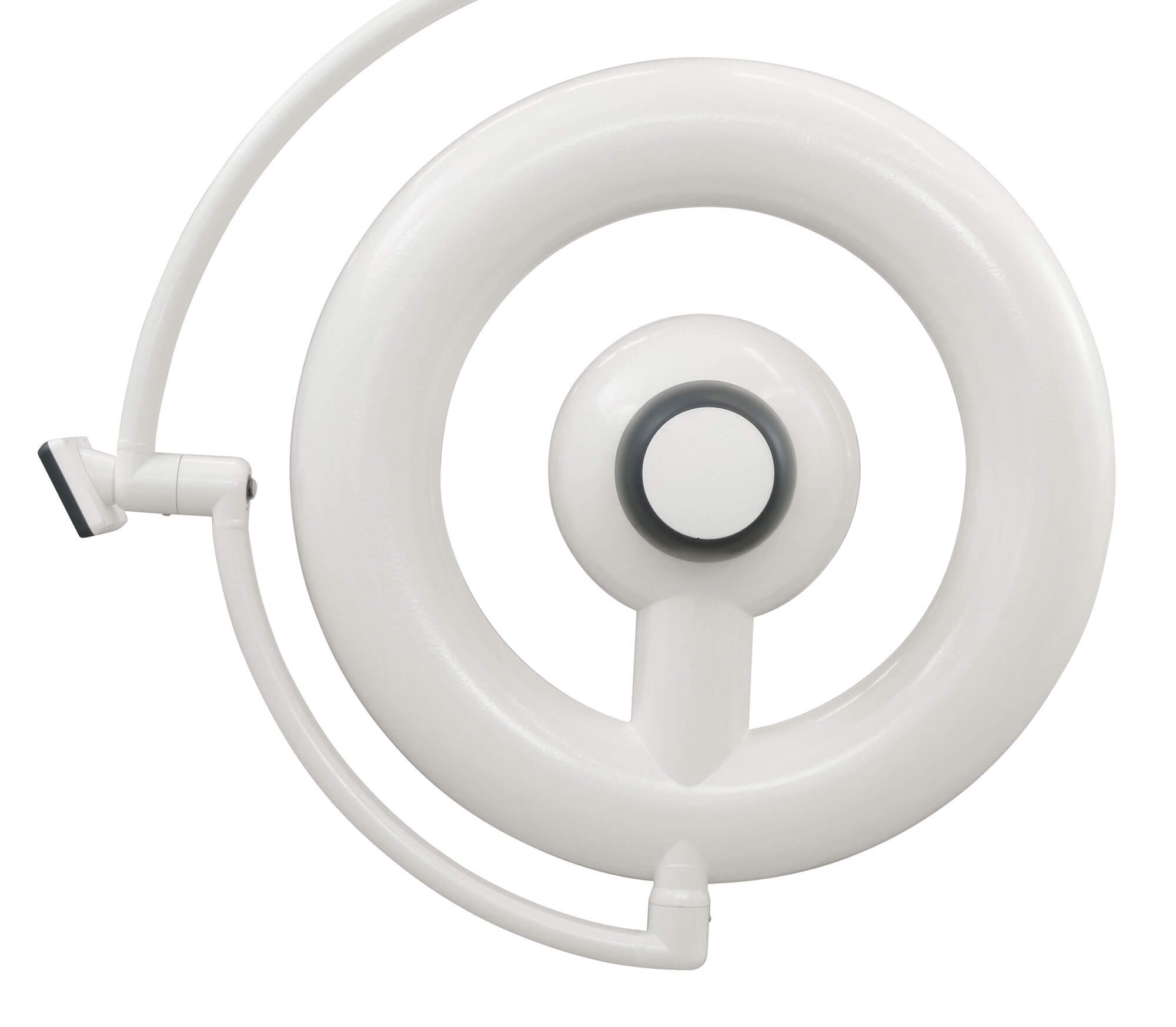

The in-light camera unit of the Q-Flow surgical light is completely hidden behind the cover glass, leaving no obstacle in the surgeon´s peripheral view. Thanks to the central position of the Q-Flow light’s camera unit, the camera can always be centred in the operating range. Wireless technology of the Q-Flow surgical light enables the suspension arms rotate a full 360 degrees, allowing surgeons to focus the camera at optimal viewing angle.

6F – Fluent 4F – Fluent 6 – Vision 4 – Vision 6i – Intelligent 4i – Intelligent
Max illumination @ 1.0 m 160 klux 140 klux 160 klux 140 klux 160 klux 140 klux
Color rendering index (Ra)* 98 98 98 98 98 98
Red color rendering index (R9)* 98 98 98 98 98 98
“Skin color” rendering index (R13)* 98 98 98 98 98 98
Turbulence intensity, DIN 1946 15.9 % <35 % 15.9 % <35 % 15.9 % <35 %
Variable color temperatures (K)** 3700 / 4400 / 5100 3700 / 4400 / 5100 3700 / 4400 / 5100 3700 / 4400 / 5100 3700 / 4400 / 5100 3700 / 4400 / 5100
Depth of illumination (L1+L2) @ 60 % 1200 mm 690 mm 1200 mm 690 mm 1200 mm 690 mm
Depth of illumination (L1+L2) @ 20 % 1800 mm 1500 mm 1800 mm 1500 mm 1800 mm 1500 mm
Light field diameter 200–370 mm 200–320 mm 200–370 mm 200–320 mm 200–370 mm 200–320 mm
Integrated dimming 10–100 % 10–100 % 10–100 % 10–100 % 10–100 % 10–100 %
Number of LEDs 90 69 90 69 90 69
Average life time of LED >60 000 h >60 000 h >60 000 h >60 000 h >60 000 h >60 000 h
External dimensions (diameter) 700 mm 560 mm 700 mm 560 mm 700 mm 560 mm
Lamp weight 16 kg 13 kg 16 kg 13 kg 16 kg 13 kg
Ambilite White White Green Green Green Green
Touch panel control
OpenOR™ compatible
MeriMote™ compatible
Extented autonomy
Integrated camera control (touch screen) - -
Wireless full HD camera (1080p60) - - O O O O
Detachable sterilizable handle

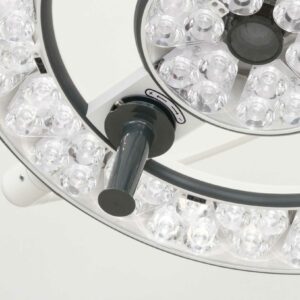

Disposable sterile handle cover O O O O O O
Intuitive Sterile Surgeon Control (Intueri™) - - - -
Fluent Sterile Surgeon Control - - - -
Shadowless optical system
Dynamic Obstacle Compensation (DOC™) - - - -
Product code 520210, 520220, 520222, 520230, 5204000 520210, 520220, 520222, 520230, 5204000 520210, 520220, 520222, 520230, 5204000 520210, 520220, 520222, 520230, 5204000 520210, 520220, 520222, 520230, 5204000 520210, 520220, 520222, 520230, 5204000
Manufacturer Merivaara Corp. Merivaara Corp. Merivaara Corp. Merivaara Corp. Merivaara Corp. Merivaara Corp.
√ = included
O = optional
*) Tolerance ±3%
**) Tolerance ±200 °K
