| Lenght | 620 mm |
| Width | 170 mm |
| Max. patient weight | 250 kg |
| Safe working load (SWL) | 21 kg |
| Longitudinal tilt (37,5°/direction) | 75° |
| Lateral tilt (37,5°/direction) | 75° |
| Sideways movement (rotates around a ball joint) | 360° |
| Weight | 4,8 kg |
| Product code | AB2230 (EU), AB2231 (US), AB2232 (UK) |

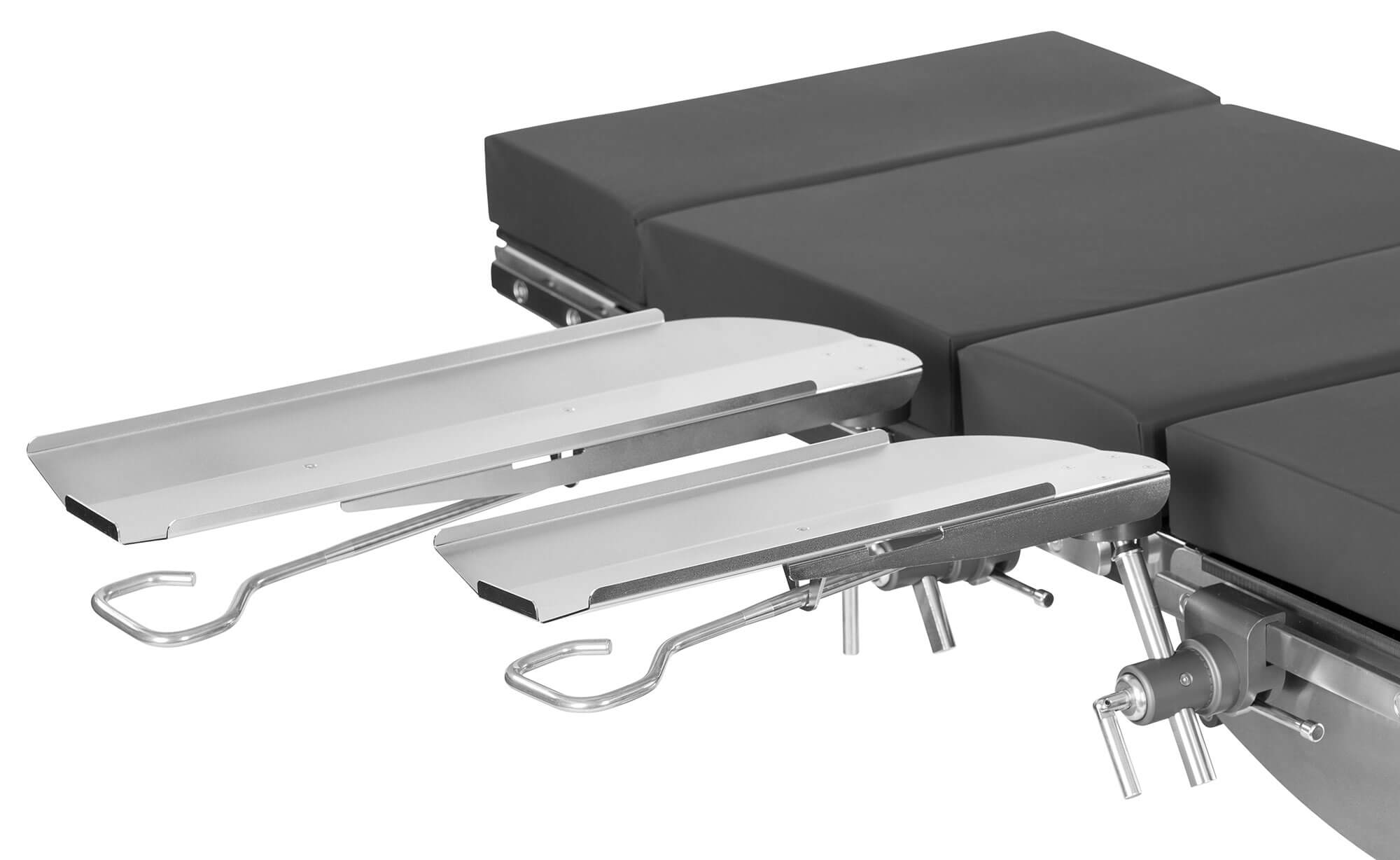

AB2230 Armboard with rotation clamp
- long rod model
- one-handed adjustment armboard with rotation clamp
- versatile adjustment options; height, horizontal and vertical rotation, wide range of angle adjustments
- antimicrobial adjustment handle
- rod: 280 mm
- Required cushions: AB3010/ AB3110, short AB3020
