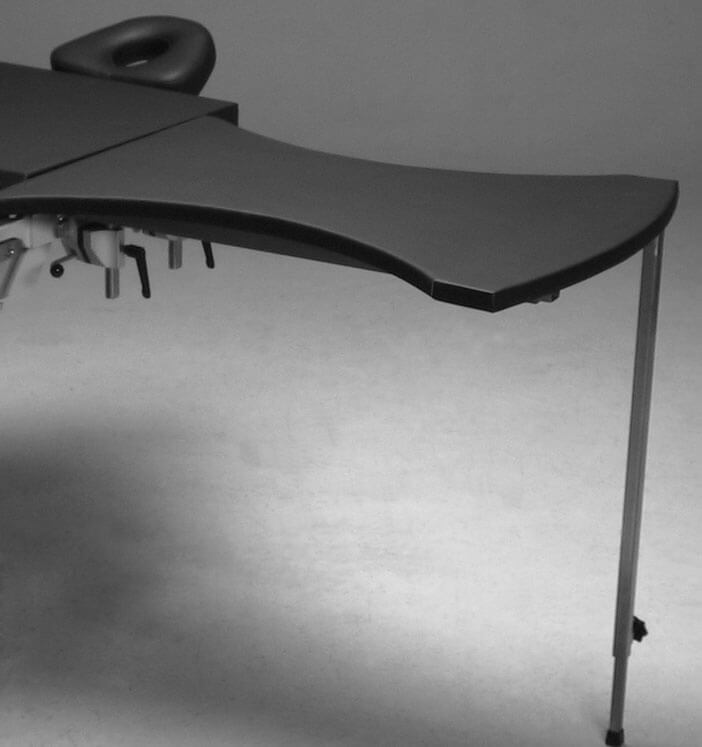

Hand operating table 10390
curved design OF Hand operating table 10390 allows for the surgeon to get closer to the operating area without the need to lean forward.
Special shaped radiolucent hand operating table with one support leg. Its curved design allows for the surgeon to get closer to the operating area without the need to lean forward. Suitable for EUR, US and UK rails.
Includes mattress and clamps. Option to use traction device 10392 and hand fixation device 10393 (Weinberger-type).
Order no.
| 110390 | Hand operating table; Options: EU, US, UK rails |
| 100 010 392 | Traction device |
| 100 010 393 | Hand fixation device (Weinberger-type) |
| Width | 850 mm |
| Height | 520 mm |
| Height adjustment | 700 – 1150 mm |
| Thickness | 30 mm |
| Max. patient weight | 200 kg |
| Safe working load (SWL) | 15 kg |
| Weight | 8.8 kg |
| Product Code | 110390, 100010390 |
